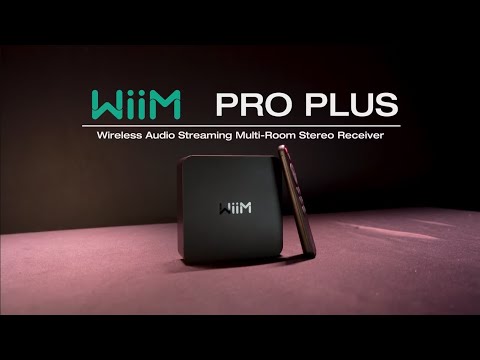

Wiim PRO Plus

Dimensions

140 x 140 x 42 mm (5.5 x 5.5 x 1.6 inches)

Weight

400g (14.1 oz)

General

Audio Input

1 x Analog RCA Line input

2 Vrms

192 kHz/24-bit

SNR 106dB

1 x SPDIF in Optical, up to 192kHz/24-bit

Audio Output

1 x Analog RCA Line output

1 x Digital optical (SPDIF) output

1 x Digital Coaxial output

up to 768kHz/32-bit

DSD512

Internal DAC

AKM4493SEQ

SNR (built-in DAC)

120dB

THD+N (built-in DAC)

0.00032 (-110dB)

Network

802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi

Bluetooth

Bluetooth 5.1

Digital Audio Output

Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.

Audio Codec

MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

Protocol

AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon

Streaming services in app

Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.

Power Input

USB Type-C, requires 5V, 1.5A or higher

Bundled adapter: 5V, 2A

LED

Three color status LED — Red, Green and White

Button Control

Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset

Included Accessories

WiiM Voice Remote

Premium RCA Cable for Line Out

Connectivity

Ethernet

Yes

Chromecast Audio

Yes

Group with Nest speakers and Display

Yes

Group with Echo speakers and Display

Yes

Alexa Multiroom with UHD

Yes

Group with HomePods

Yes

Works with Alexa

Yes

Works with Google

Yes

Works with Siri

Yes

Group with WiiM or Linkplay devices

Yes

Gapless Playback

Yes

10-band Graphics EQ

Yes

Linkplay Music Streaming Platform

Yes

CPU

Quadcore A53

DRAM

512 MB

Flash

512 MB
